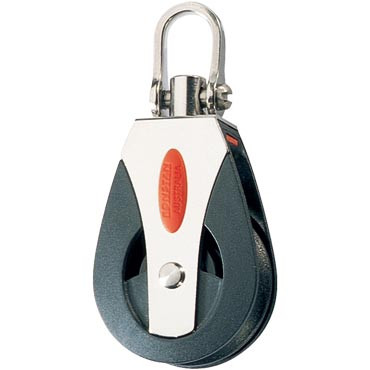

Series 40 - Single - Universal Head

FEATURES
Exceptionally high working loads
Lightweight
Suitable for both rope or wire
Captive Lock™ universal head
Slotted pin shackle eliminates fouled lines

PRODUCT INFORMATION
Ideal for high load applications. Wear resistant sheave material, in lightweight, self lubricating polymer, is suitable for use with rope or wire.Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required

APPLICATIONS
Dinghy control lines
Dinghy vangs
Cunninghams
Traveller controls
Halyards
Backstays

MATERIALS
Nylatron® sheave
Grade 316 stainless steel load strap and head fitting
Impact and U.V. resistant, fibre reinforced Nylon cheeks

Sheave Ø 40 mm
Max. Rope Ø 10 mm
Max. Cable Ø 4 mm
Pin Ø 5.0 mm
M.W.L. 500 kg
B. L. 1000 kg
Weight 69 g
